AirMedia for Mac

NOTE: You must be connected to the eduroam wireless network to use AirMedia.

NOTE: AirMedia will only display your laptop to the room equipment. You will need to share your screen via Zoom or Teams if you are also meeting online.

Instructions

Crestron Displays for Room 101/122, Room 420, FLR 124, FLR 131

  1. Power on the room system using the appropriate control panel.
  2. Select AirMedia for the signal source.
  3. On the presenter laptop, open a new browser page and enter the IP address displayed on the display screen.

    4. Picture 4 - AirMedia Splash Screen

    Picture 5 - IP Entry Close-Up

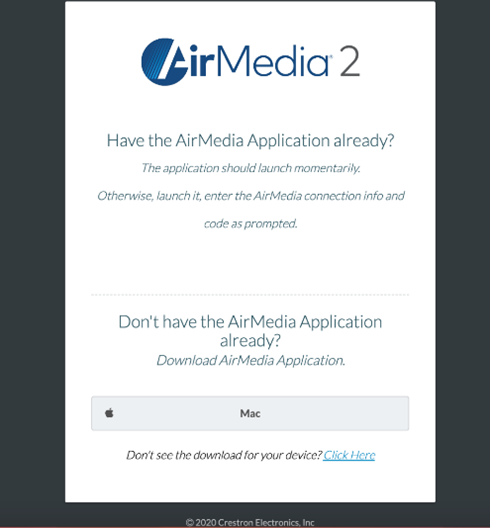

  4. (OPTIONAL) Download and run the software installer.

    5. Picture 14 - Mac Download Button
    Picture 15 - Mac Download File

  5. Click on the Control Center on the top right of your screen and select Screen Mirroring.


    6. Picture 16 - Mac Screen Mirroring

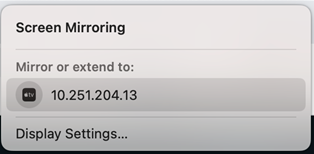

  6. Select the receiver’s host name that was displayed on the room display.

    7. Picture 17 - Receiver Host Select

  7. Login via the downloaded client or pop-up window by entering the passcode shown on the display screen.

    8. Picture 18 - Mac Code Entry Screen
    Picture 19 - AirMedia Splash Screen Zoom-In

Wireless sharing should now be available. You can stop sharing your screen by clicking on screen mirroring in the control center, then clicking on the receiver’s name.
