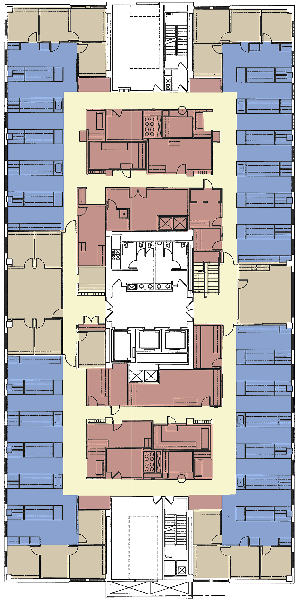

SAMPLE FLOOR PLAN
OFFICES
LABORATORIES
LABORATORY SUPPORT
Elevators
- 2 passenger with 3,500 pound capacity
- One service elevator with 5,000 pound capacity
Structure
- Brick and pre-cast concrete
HVAC
- All-air constant volume system
- Laboratory areas: Capable of delivering 13 air changes per hour
- Office areas: Capable of cooling 4.0 watts/square foot
Electrical
- 480/277 V, 3PH, 4 wire service
- Two high-performance generators (one for life safety systems and one for laboratory equipment)
Fire Protection
- Fully-addressable Multiplex system
Gas
- Service to building
- Runout to benches
- Submetering of usage
Plumbing
- Tenant metering and submetering
- Backflow prevention at laboratory connections
- Manifolds, piping, and other requirements for laboratory gases, compressed air, vacuum systems, steam, and humidified air
